Data Processing (Sahara)

Sahara aims to provide users with simple means to provision a Hadoop cluster by specifying several parameters like Hadoop version, cluster topology, nodes hardware details and a few more.

Clusters

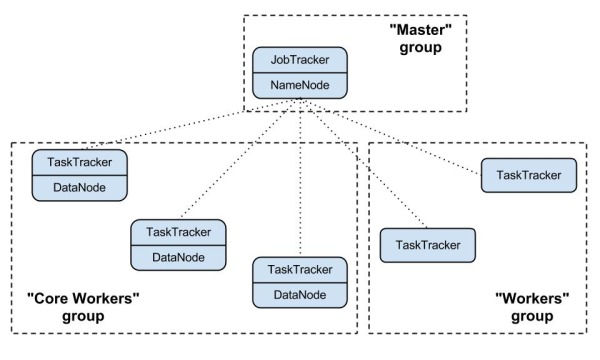

A cluster deployed by Sahara consists of node groups. Node groups vary by their role, parameters and number of machines. The picture below illustrates an example of a Hadoop cluster consisting of 3 node groups each having a different role (set of processes).

Node group parameters include Hadoop parameters like io.sort.mb or mapred.child.java.opts, and several infrastructure parameters like the flavor for VMs or storage location (ephemeral drive or Cinder volume).

A cluster is characterized by its node groups and its parameters. Like a node group, a cluster has Hadoop and infrastructure parameters. An example of a cluster-wide Hadoop parameter is dfs.replication. For infrastructure, an example could be image which will be used to launch cluster VMs.

Source: http://docs.openstack.org/developer/sahara/userdoc/overview.html

Querying

Listing available Clusters

List<? extends Cluster> clusters = os.sahara().clusters().list();

Finding a Cluster by ID

Cluster cluster = os.sahara().clusters().get(clusterId);

Creating a Cluster

Cluster cluster = os.sahara().clusters()
                    .create(Builders.cluster()
                       .name("def-cluster")
                       .pluginName("vanilla")
                       .hadoopVersion("2.6.0")
                       .template(clusterTemplateId)
                       .image(imageId)
                       .keypairName("mykeypair")
                       .managementNetworkId(networkId)
                       .build());

Deleting a Cluster

ActionResponse resp = os.sahara().clusters().delete(clusterId);

Scaling

Add Node Groups

Cluster cluster = os.sahara().clusters().addNodeGroup(clusterId, Builders.nodeGroup()
                        .count(3)
                        .name("b-worker")
                        .nodeGroupTemplateId(templateId)
                        .build());

Resizing Node Groups

Cluster cluster = os.sahara().clusters().resizeNodeGroup(clusterId, "worker", 4);


Cluster Templates

In order to simplify cluster provisioning Sahara employs the concept of templates.

There are two kinds of templates: node group templates and cluster templates. The former is used to create node groups, the latter - clusters. Essentially templates have the very same parameters as corresponding entities. Their aim is to remove the burden of specifying all of the required parameters each time a user wants to launch a cluster.

Querying

Listing Cluster Templates

List<? extends ClusterTemplate> clusters = os.sahara().clusterTemplates().list();

Finding a Cluster by ID

ClusterTemplate ctemplate = os.sahara().clusterTemplates().get(templateId);

Creating a Cluster Template

ClusterTemplate ctemplate = os.sahara().clusterTemplates()
                              .create(Builders.clusterTemplate()
                                 .name("cluster-template")
                                 .pluginName("vanilla")
                                 .hadoopVersion("2.6.0")
                                 .managementNetworkId(networkId)
                                 .addNodeGroup(Builders.nodeGroup()
                                                .name("worker")
                                                .count(3)
                                                .nodeGroupTemplateId(templateId)
                                                .build())
                                 .addNodeGroup(Builders.nodeGroup()
                                                .name("master")
                                                .count(3)
                                                .nodeGroupTemplateId(templateId)
                                                .build())
                                 .build());

Deleting a Cluster Template

ActionResponse resp = os.sahara().clusterTemplates().delete(templateId);


Plugins

A plugin object defines the Hadoop or Spark version that it can install and which configurations can be set for the cluster.

Querying

Listing all Plugins

List<? extends Plugin> plugins = os.sahara().plugins().list();

Getting a Plugin by Name

Plugin plugin = os.sahara().plugins().get("vanilla");

Getting a Plugin by Name and Version

Plugin plugin = os.sahara().plugins().get("vanilla", "2.4.1");

Conversion

Some plugins have specific configuration files. The following example shows the ability to convert a plugin specific configuration info a cluster template.

ClusterTemplate ctemplate = os.sahara().plugins()
                              .convertConfig("vanilla", "2.4.1", "My Template", Payloads.create(file));


Image Registry

The image registry is a tool for managing images. Each plugin lists required tags for an image. The Data Processing service also requires a user name to log in to an instance’s OS for remote operations execution.

The image registry enables you to add tags to and remove tags from images and define the OS user name.

Querying

Listing Images

List<? extends Image> images = os.sahara().images().list();

Listing Images with Tags

List<? extends Image> images = os.sahara().images().list("tag 1", "tag 2", "etc");

Finding an Image by ID

Image image = os.sahara().images().get(imageId);

Registering / Unregistering

Register Image

Image image = os.sahara().images().register(imageId, "ubuntu", "Ubuntu image for Hadoop 2.6.0");

Unregister Image

ActionResponse resp = os.sahara().images().unregister(imageId);

Tagging

Add tags to Image

Image image = os.sahara().images().tag(imageId, "vanilla", "2.6.0", "some_other_tag");

Remove tags from an Image

Image image = os.sahara().images().untag(imageId, "some_other_tag");


Node Group Templates

A cluster is a group of nodes with the same configuration. A node group template configures a node in the cluster.

A template configures Hadoop processes and VM characteristics, such as the number of reduce slots for task tracker, the number of CPUs, and the amount of RAM. The template specifies the VM characteristics through an OpenStack flavor.

Querying

Listing Node Group Templates

List<? extends NodeGroupTemplate> ngtemplates = os.sahara().nodeGroupTemplates().list();

Finding a Node Group Template by ID

NodeGroupTemplate ngtemplate = 	os.sahara().nodeGroupTemplates().get(templateId);

Creating a Node Group Template

NodeGroupTemplate ngtemplate = os.sahara().nodeGroupTemplates()
                                 .create(Builders.nodeGroupTemplate()
                                    .name("master")
                                    .pluginName("vanilla")
                                    .hadoopVersion("2.6.0")
                                    .addNodeProcess("namenode")
                                    .addNodeProcess("resourcemanager")
                                    .addNodeProcess("oozie")
                                    .addNodeProcess("historyserver")
                                    .flavor("42")
                                    .floatingIpPool(networkId)
                                    .build());

Deleting a Node Group Template

ActionResponse resp = os.sahara().nodeGroupTemplates().delete(templateId);


Special Thanks: to Ekasit Kijsipongse for contributing this extension to OpenStack4j
